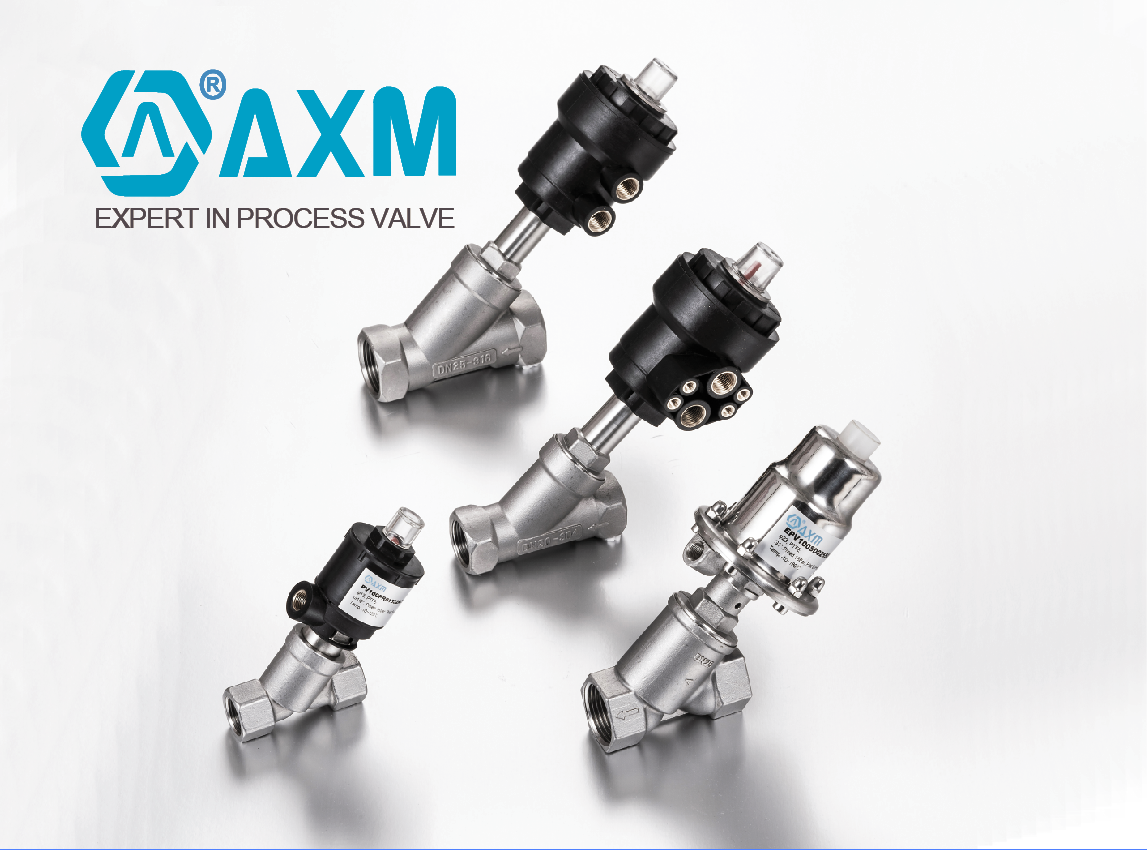

2/2-way Angle-Seat Valve for medium up to +180°C, threaded port connection, DN 10-80

• High flow rate

• Long life cycle

• NC and NO universal actuators with modular universal accessory program up to control heads

• Deliverable with flow direction below or above seat

• Simple conversion of the control function

2/2-way Angle-Seat Valve for medium up to +180°C, threaded port connection, DN 15-65

• High flow rate

• Long life cycle

• NC and NO universal actuators with modular universal accessory program up to control heads

• Deliverable with flow direction below or above seat

• Simple conversion of the control function

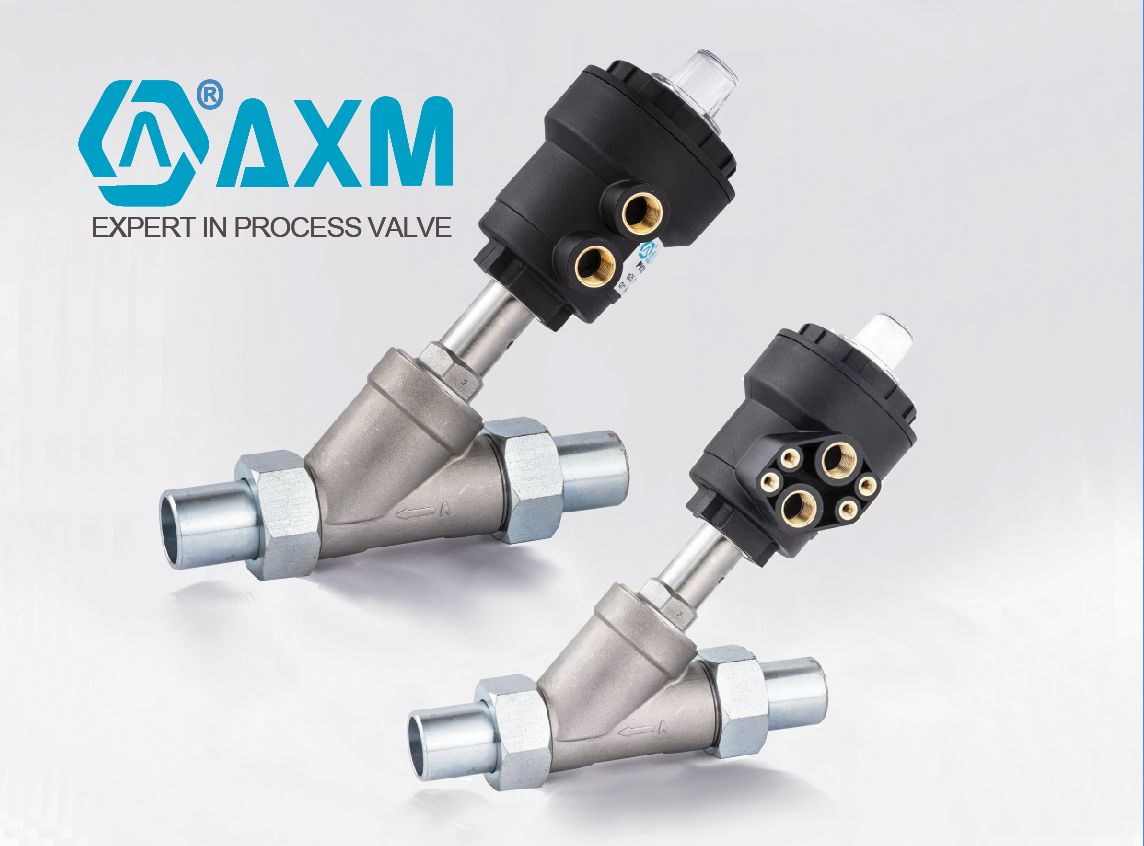

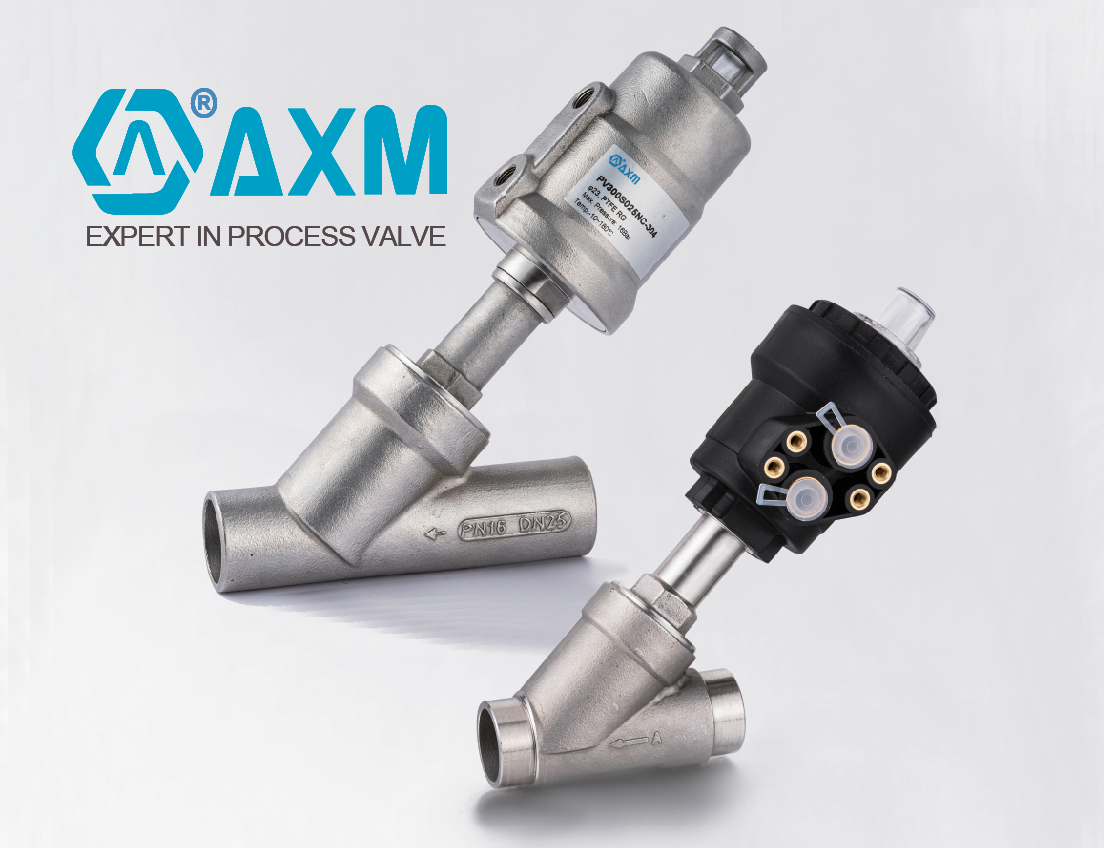

2/2-way Angle-Seat Valve for medium up to +180°C, With Weld End, connection, DN 15-65

• Long life cycle

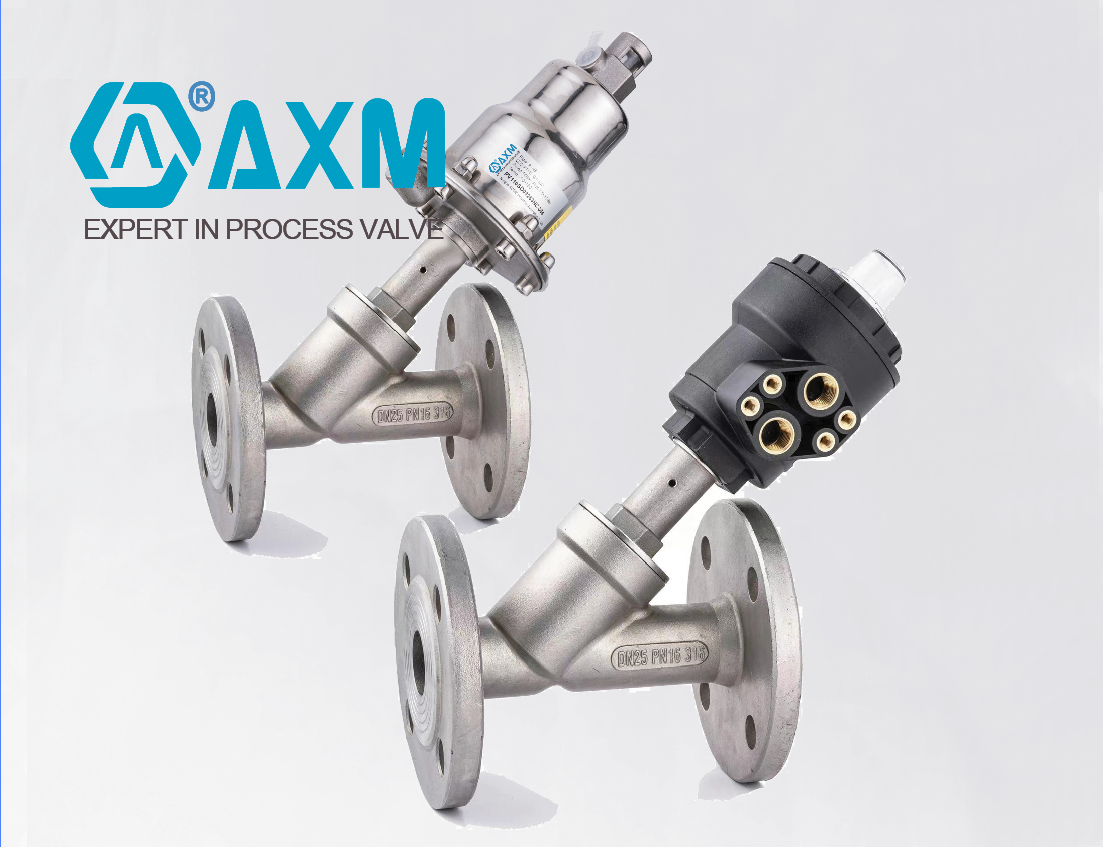

2/2-way Angle-Seat Valve for medium up to +180°C, Flange Ends connection, DN 15-100， PA Actuator.

• High flow rate

• Long life cycle

• NC and NO universal actuators with modular universal accessory program up to control heads

• Deliverable with flow direction below or above seat

• Simple conversion of the control function

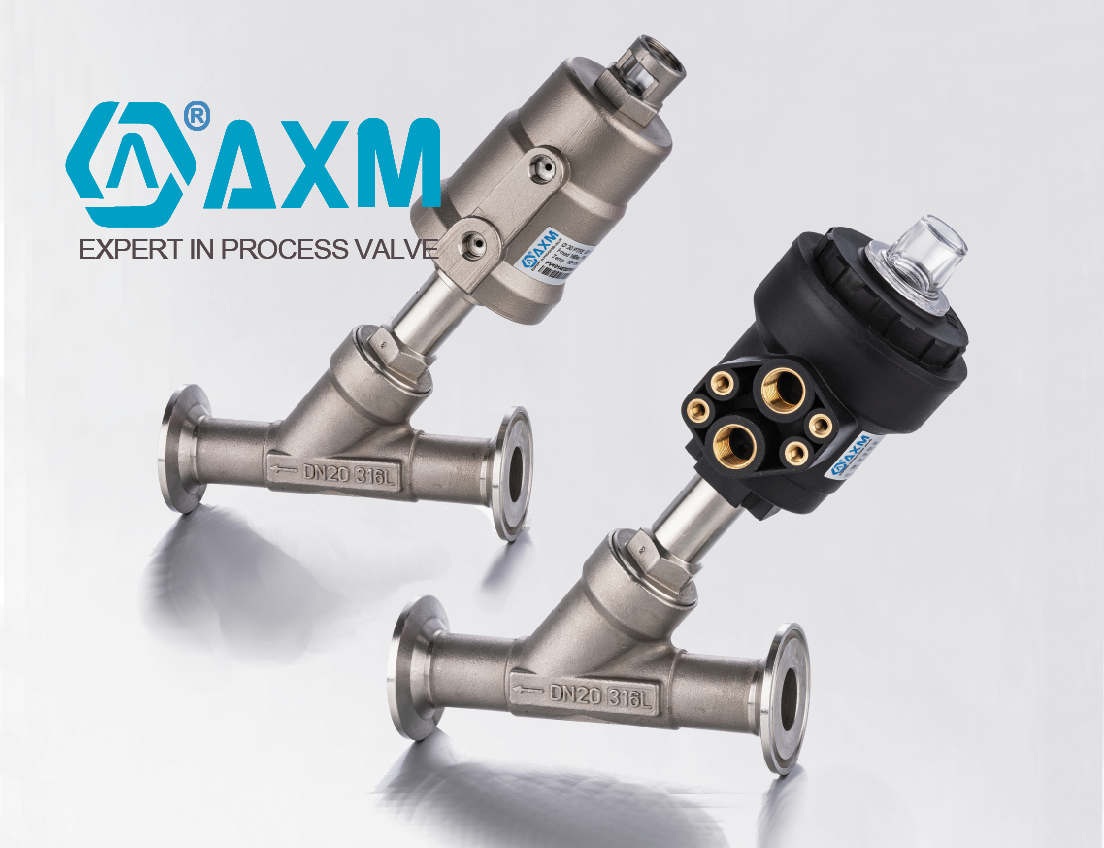

2/2-way Angle-Seat Valve for medium up to +180°C, Tri-Clamp Ends connection, DN 15-65
• High flow rate
• Long life cycle
• NC and NO universal actuators with modular universal accessory program up to control heads
• Deliverable with flow direction below or above seat

• Simple conversion of the control function；

• The Tri-Clamp Ends valve, for Instant connections with clamp.

GENERAL FEATURES

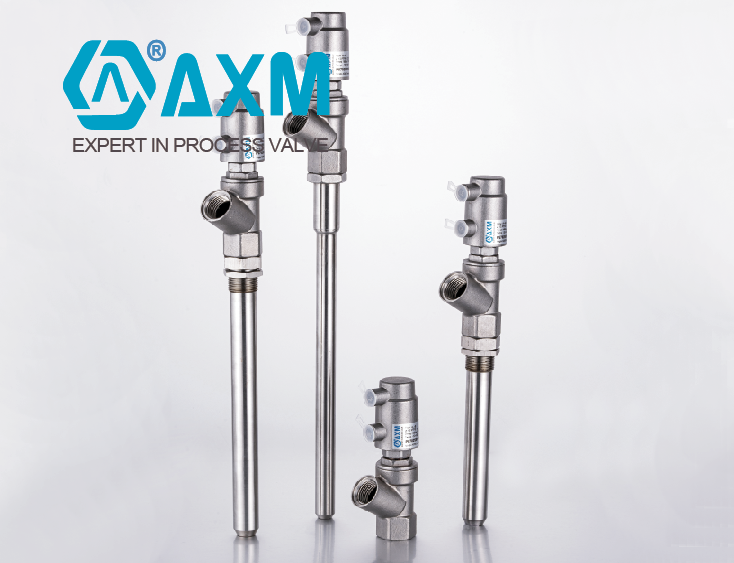

* PV700 series is an industrial gas-controlled valve developed for fluid filling equipment.

* Valve body material: AISI 304,AISI 316 and AISI316L ;

* Valve compact shape, diverse design, easy to install;

* Automatic calibration of valve seat, excellent sealing performance;

* Y-type filling and vertical filling are optional;

* The length of the feedgun can be customized according to the needs;

* The valve structure has internal sealing filling, external sealing filling and back suction filling structure is optional;

* Valve port size DN15~25 is optional.

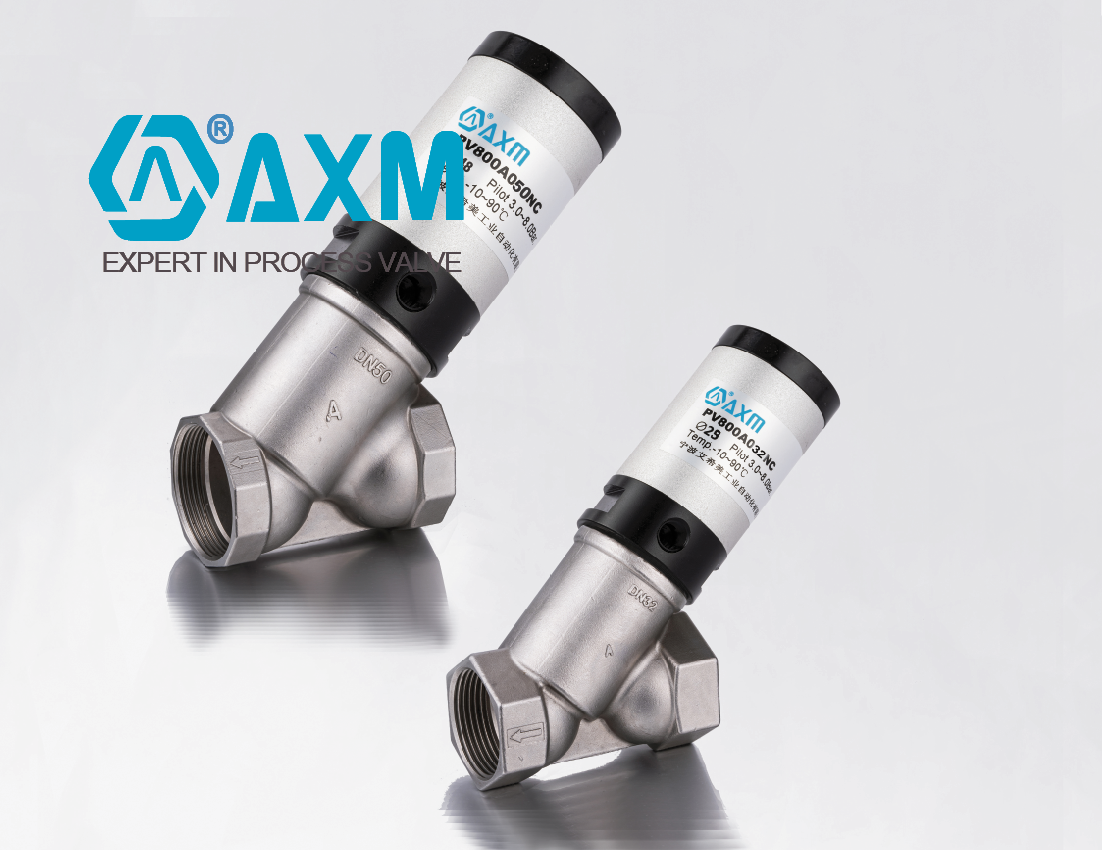

2/2-way Angle Seat Valve, Pneumatically Operated, for Medium up to +150°C, Threaded and Weld ends is optional; Port Connection, DN15-50

*   Classic design, Long life cycle;

*   NC and NO is optinal;

*   Structure in coaxial stop, leakage proof abd high flow rate;

*   Saving energy.

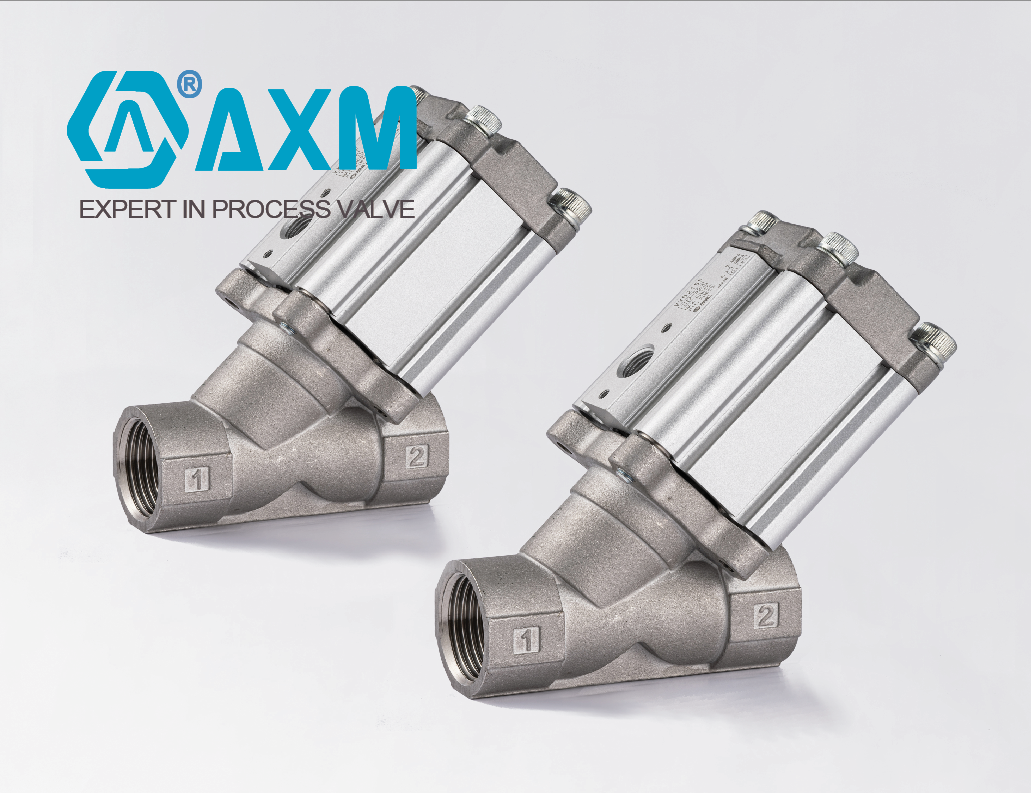

2/2-way Angle Seat Valve, Pneumatically Operated, for Medium up to +180°C, Compact Aluminum actutaor, Female threaded; Port Connection DN15-DN25;

*   Design compact style 2/2-way stainless steel valve;

*   Movable seat & V type seals ensure reliable and effective performance;

*  Y-type valve body;

*   Double acting NC and double acting liberty is Optional.

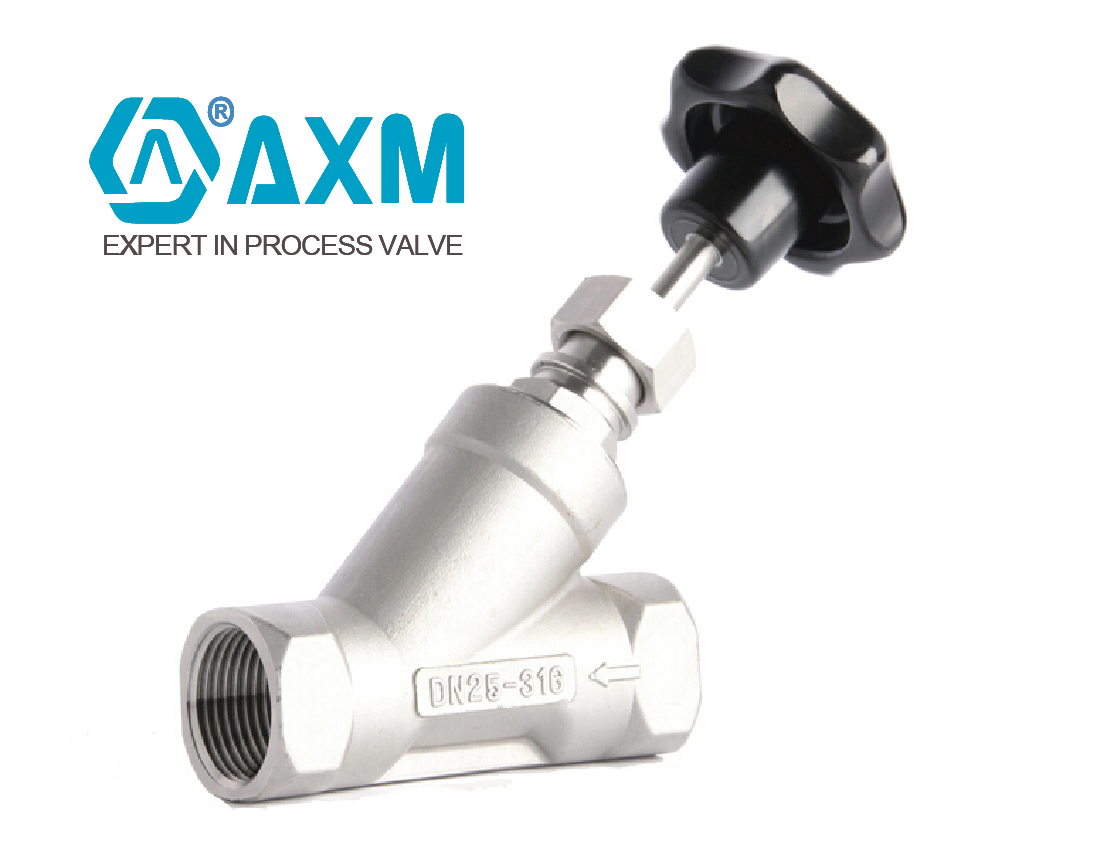

2/2-way Angle-Seat Valve， Manually operated, for medium up to +180°C,threaded port connection, DN 15-50.

• Compact industrial design with long service life;

• Adjustable flow rates;

• Stainless steel valve body;

• Excellent seat tightness due to PTFE soft sealing.
