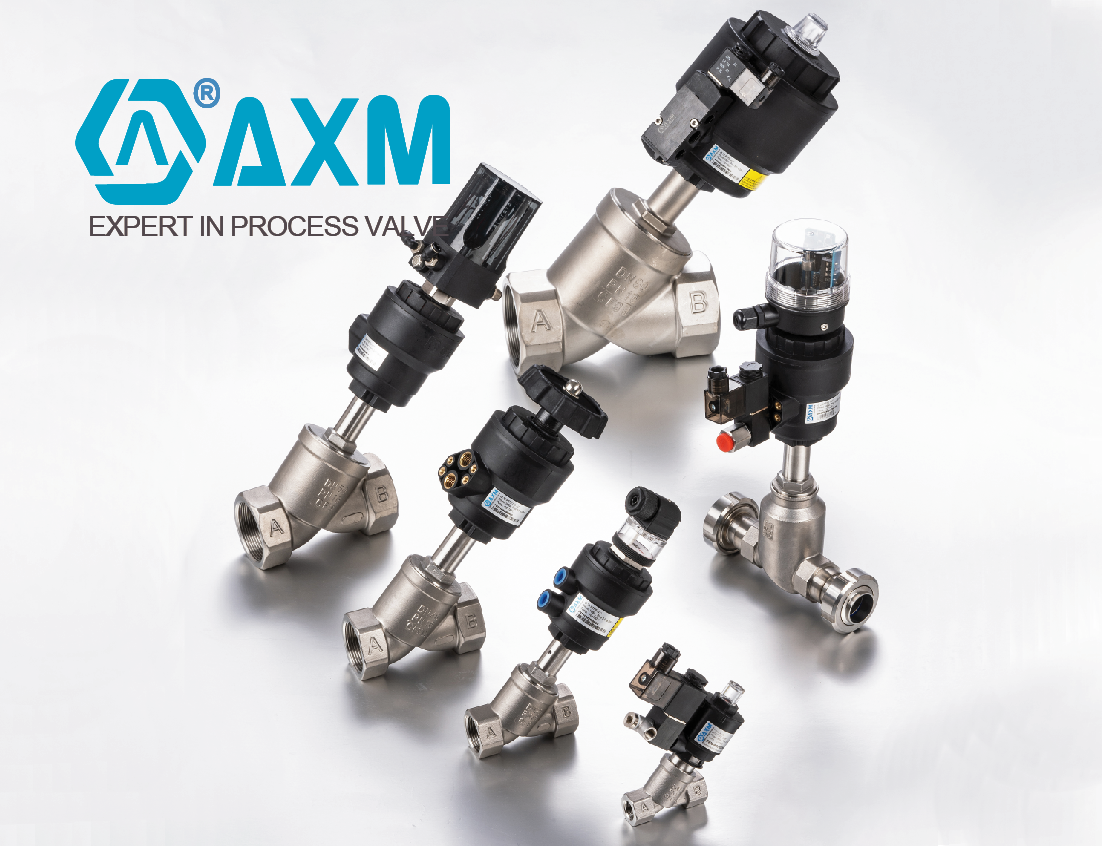

2/2-way Angle-Seat Valve for medium up to +180°C, threaded port connection, DN 15-80

• High flow rate

• Long life cycle

• NC and NO universal actuators with modular universal accessory program up to control heads

• Deliverable with flow direction below or above seat

• Simple conversion of the control function

GENERAL FEATURES

* PV700 series is an industrial gas-controlled valve developed for fluid filling equipment.

* Valve body material: AISI 304,AISI 316 and AISI316L ;

* Valve compact shape, diverse design, easy to install;

* Automatic calibration of valve seat, excellent sealing performance;

* Y-type filling and vertical filling are optional;

* The length of the feedgun can be customized according to the needs;

* The valve structure has internal sealing filling, external sealing filling and back suction filling structure is optional;

* Valve port size DN15~25 is optional.

• TV series 3-way seat valve consists of a pneumatically operated actuator and a 3-way valve body

• Available material for the valve body is stainless steel 304,316 or 316L;

• Interchange of pressure and service ports enables different fluidic circuit functions, such as the mixing or distributing of mediums.

• Thread port or Tri-Clamp connection are optional.

DV100/200 series Plunger pilot drain valve is operated by a piston actuator, single acting or double acting;

Actuator are made of four different material, applicable to different ambient temperature;

2/2-way stainless steel valve body with big flow capacity;

Maintenance free, manual switching can be achieved conveniently;

Thread and Tri-clamp connection are optional.

The externally piloted diaphragm valve consists of a pneumatically operated piston actuator, a diaphragm and a 2-way valve housing made of investment cast stainless steel;

The standard material of the actuator is PPS, with its favourable flow characteristics and zero dead volume, the valve housing enables high flow capacities and a variety of applications to be realized

GENERAL FEATURES

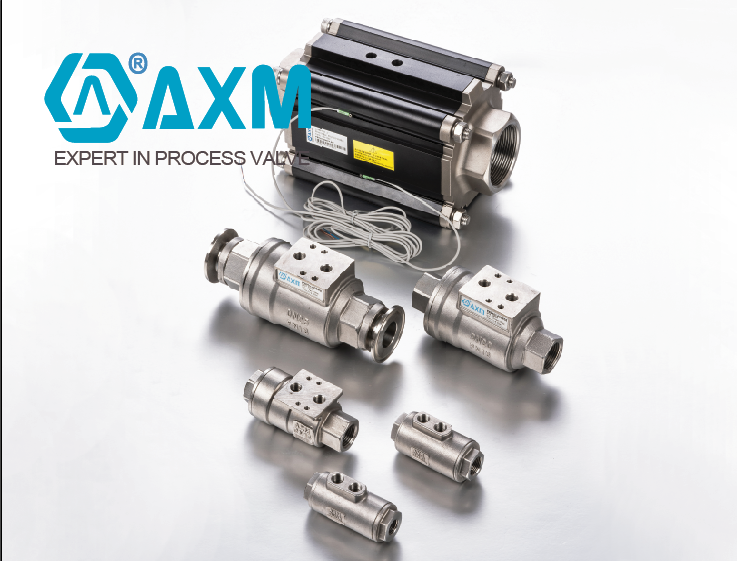

* Designed in a veatical stroke, pneumatic axial valve is integrates valve body and actuator into one piece;

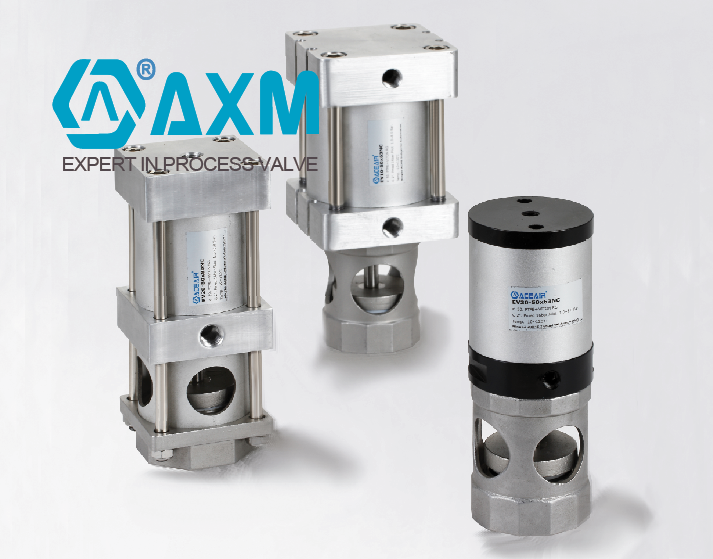

*  Series EV10/20 consists of 2-way direct acting  pneumatically operated exhaust valve, specifically designed for EPS foam machinery,

*  Available in normally closed liberty constructions;

*  Built for specific applications ,valve body made of stainless steel and controlling actuator made of aluminum alloy.

*   PA Actuator for Pneumatic Angle seat valve;

*   NAMUR-Adapter for pilot valve;

*    Solenoid valve (2 positon/3 ways) for Single acting angle seat valve;

*   Han wheel for Emergency Control in Angle seat valve.

*   Positoner (positon locator/process controller)

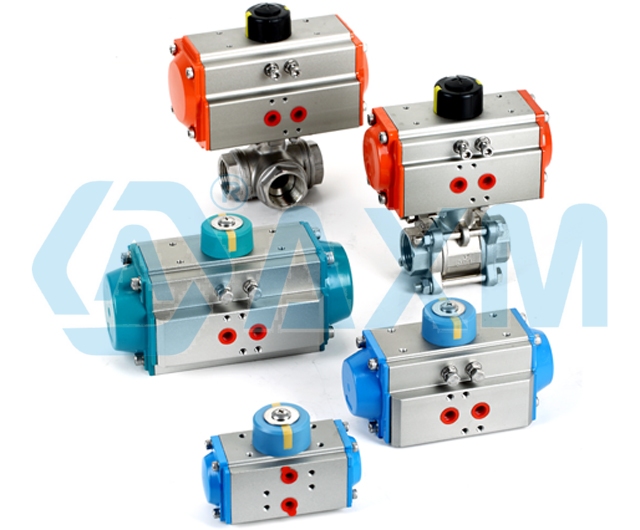

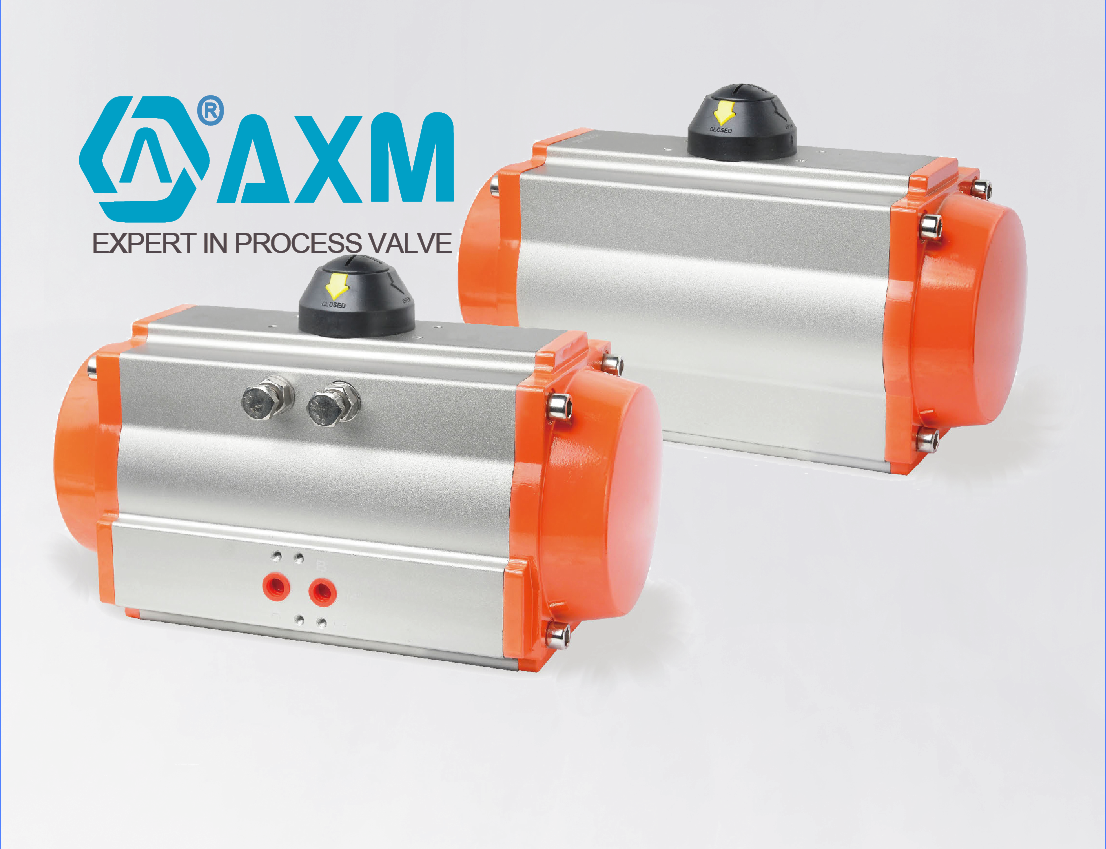

*  Series VT Pneumatic actuator bore size 32-400mm;

*  Improvement design for rack and pinion ;

*  High performance & reliability;

*  Fully compliance with all the latest international standards;

*  Extensive products range allows best versatility at lower price;

*  Innovations and patented solutions for a universal drive shaft;

*  Multifunction position indicator.

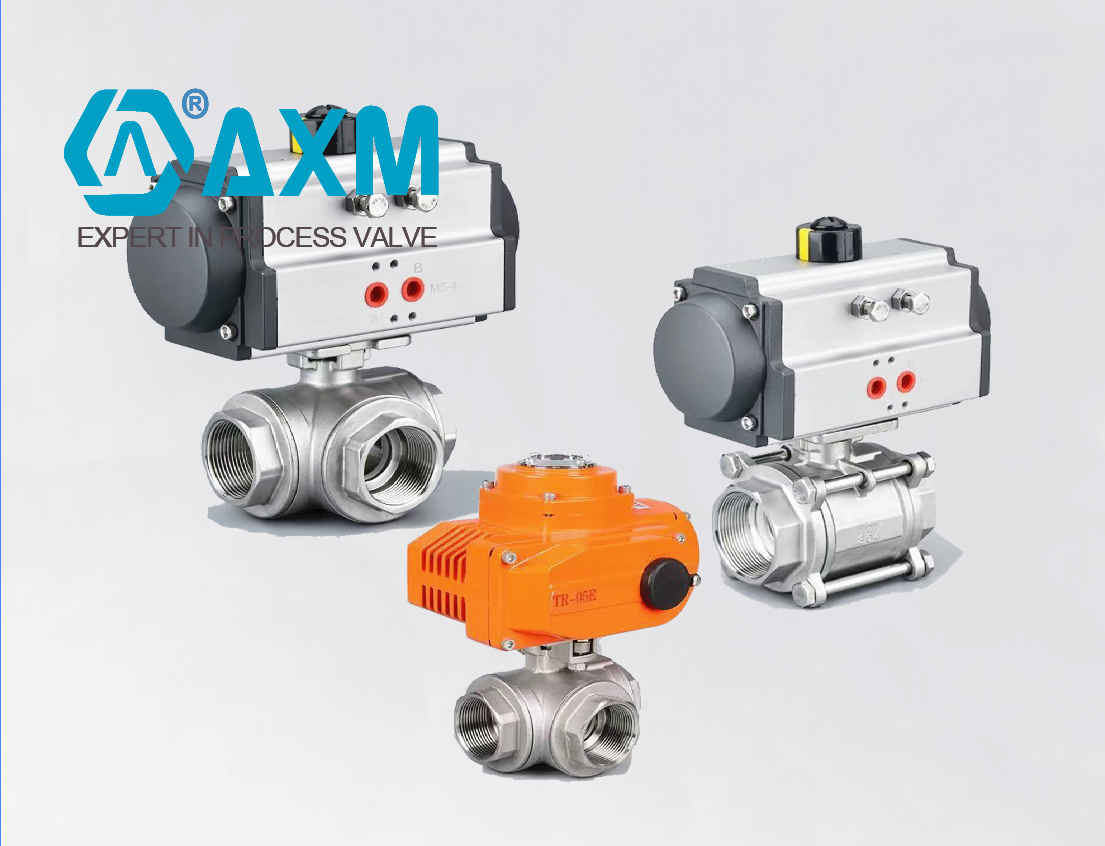

*  Series VSP pneumatic ball valve

*  Port connection DN8-DN100;

*  Valve body form: 2pcs or 3 pcs in optional;

*  Valve type: 2 –way, 3-way L and 3-way T is optional.

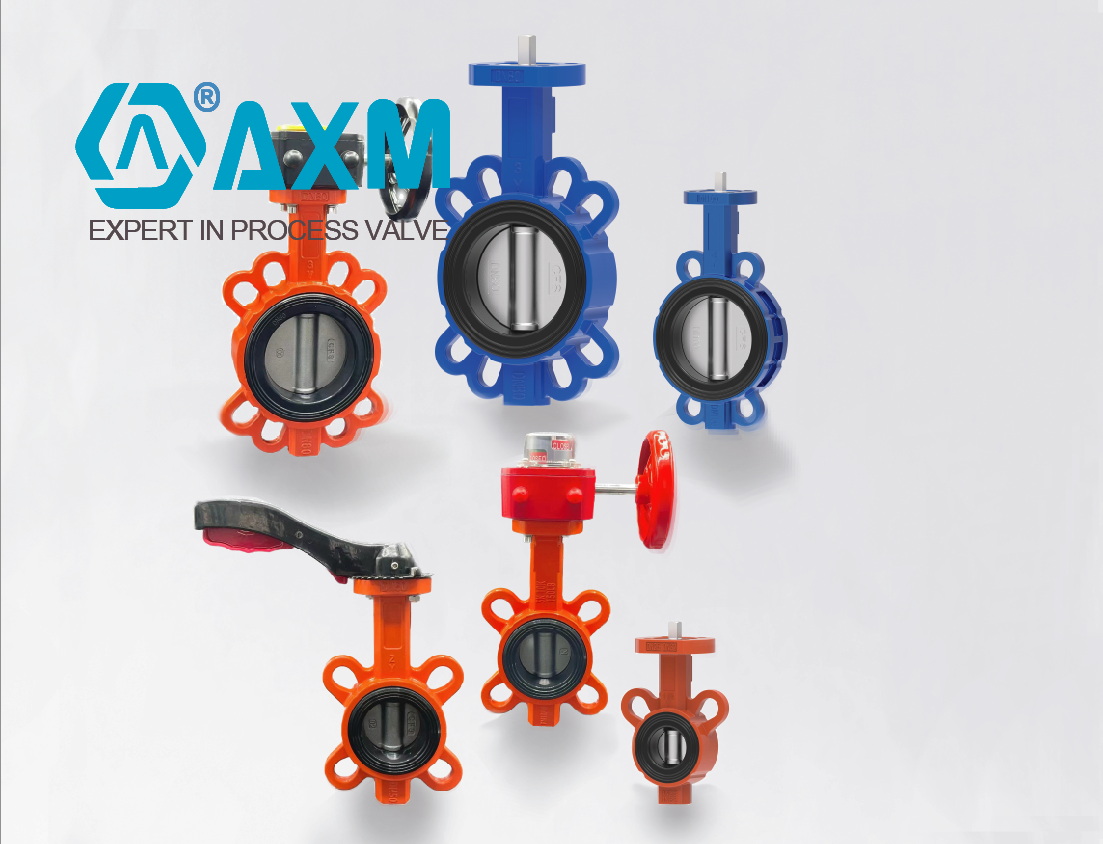

*  Series D071-XP wafer butterfly valve port size DN40-DN600;

*  Small in size and light in weight. Easy installation and mintenance; It can be mounted wherever nedded.
*  Siple and compact construction, quick 90 degrees on-off operation;
*  Miniminzed operating torque, energy saviing;
*  Fiow curve tending to straight line. Excellent regulation performance;
*  Long service life, Standing the test of tens of thousands opening/closing operations;

*  Bubbles-tight sealing with no leakage under the pressure test
*  Wide selection of materials, applicable for various mdeium.

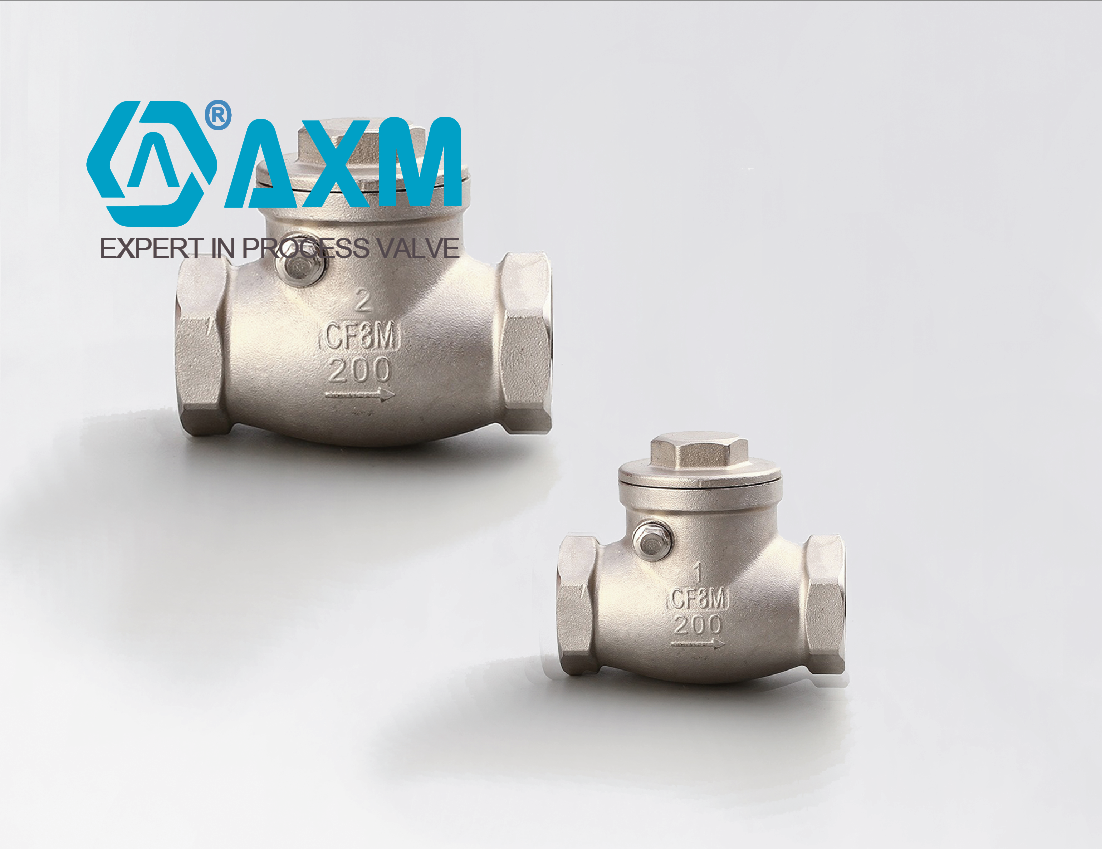

Check Valve， also known as a one-way valve or Check Valve. Pipeline used to prevent reflux of a fluid valve. So pipeline fluid can only make one-way flow of fluid when the clock back, the flap valve can be shut down automatically to prevent backflow. According structure can be divided into two categories : elevating and spin-Kai (or a shake-flap). Former perpendicular to the valve flap valve passageway movements with Valve are generally designed as a cut-off valve and valve common. The latter is a flap valve around the sealing surface for rotating movement, resistance than elevating small, poor sealing performance.

*   2PCS Spring Vertical lift check valve;

*   Female swing check valve;

*   Y-spring vertical lift check valve;

*   Y-swing check valve.

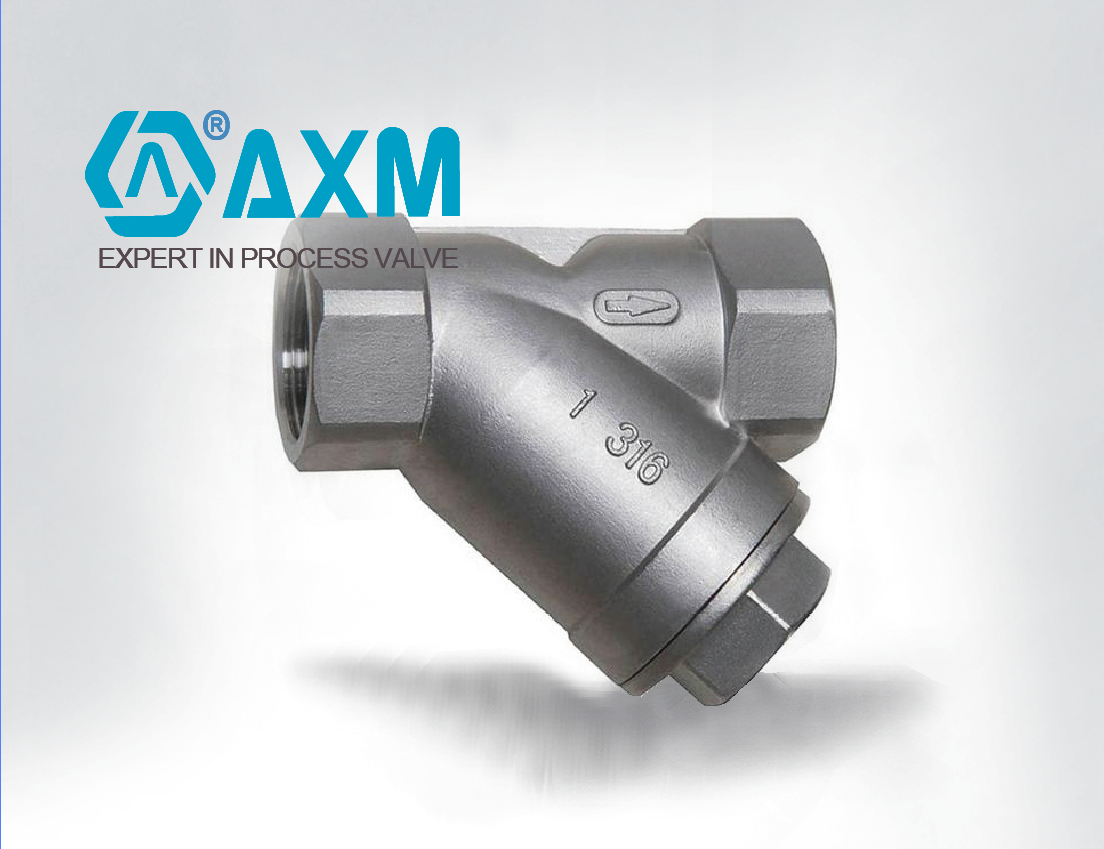

A  economical Y-type strainer with a stailess steel screen ideally suited for water applications to protect meters, pumps, valves and other pipeline equipment.

To make angle seat valve realize the best performance, the control components must be precise and accurate. Componet with good performace is the precondition to realize precise and exact action.

*   NAMUR standard series 4M 5/2 way solenoid valve.

*   Series 4V 5/2 way solenoid valve.

*   Series 3V1  3/2 way solenoid valve;

*   Series 3V   3/2 way solenoid valve.

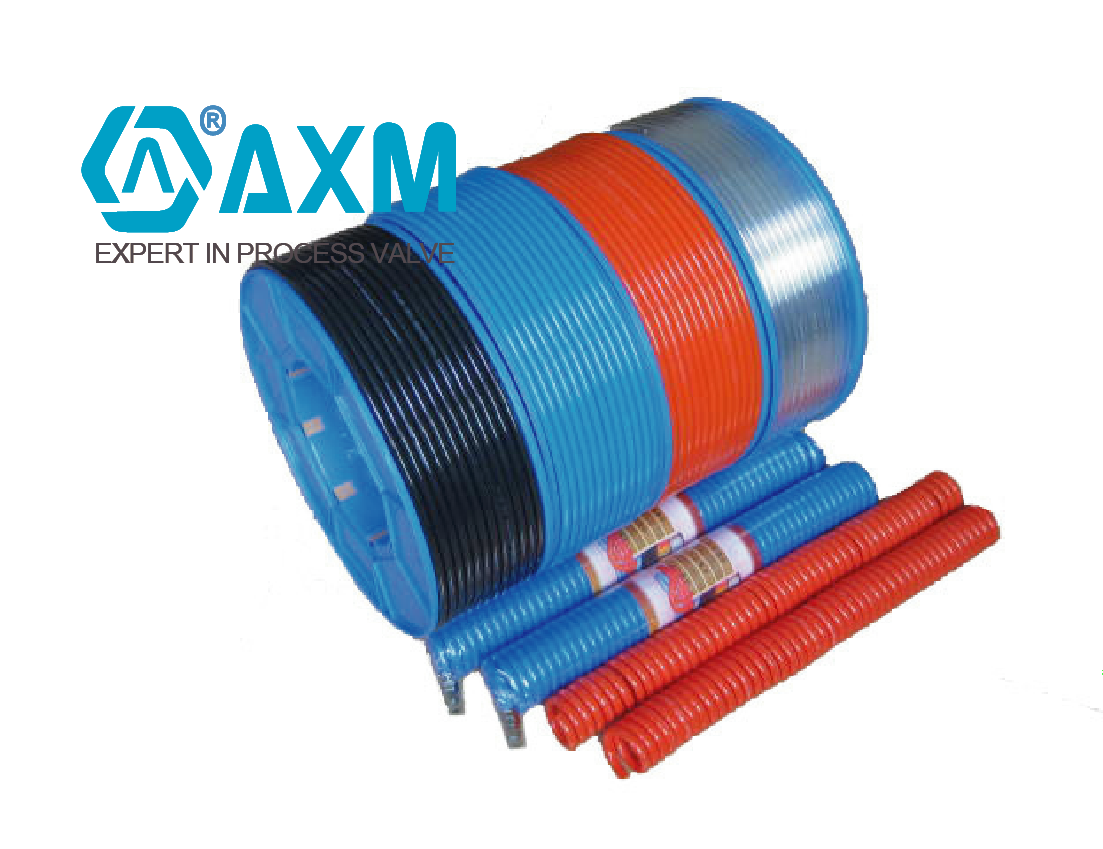

*   PU Pneumatic tube；

*   PU coil hosepart；

*   PA  PA （Nylon 6 & Nylon 11/12) Pneumatic hose。
