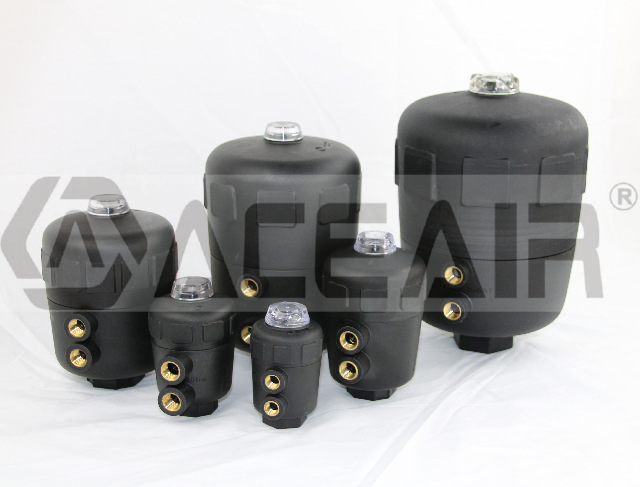

*  It is mainly controlling part for  Pneumatic angle seat valve.；

*  Material :PA 66 (Nylon66)；

*  Max. Pressure : 10Bar；

*  Including parts：Transparent cap、Actuator Front Cover、Piston 、position indicator、Main part of Actuator。

Accessaries for Pneumatic Angle Seat Valve

NAMUR-Adapter for Pilot Valve

Advantage/Benefits

*   NAMUR interface allows easy installation of pilot valve to actuator;

*   Increased operational reliablity when using the NAMUR pilot valves type 5/2 way 4M310-08.

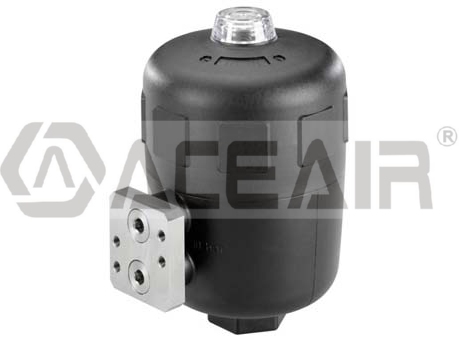

NAMUR type Actuator，NAMUR direct connections on piloting head, direct coupling with solenoid valve.

*   NAMUR interface allows easy installation of pilot valve to actuator.

*   Increased operational reliablity when using the NAMUR pilot valves type 4M310-08/10.

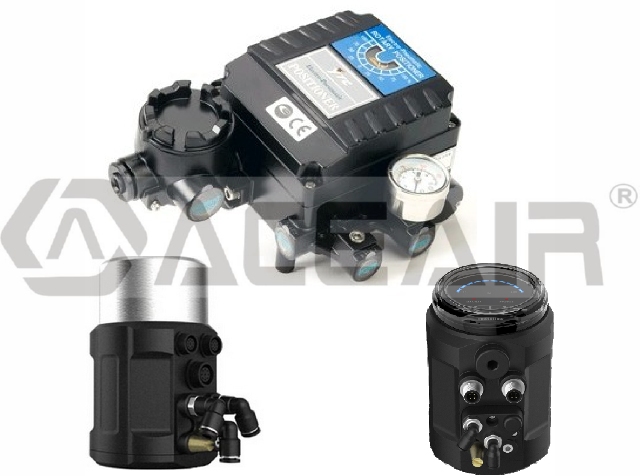

Actuator with Valve Positioner, Intelligent Valve Positioner & Electronic-Pneumatic Valve Positioner is optional.

*   Intelligent Valve Positioner Series 1400 is optional;

*   Intelligent Valve Positioner Series 1500 is optional;

*   Electronic-pneumtaict Valve Positioner series YT1000 is optional.

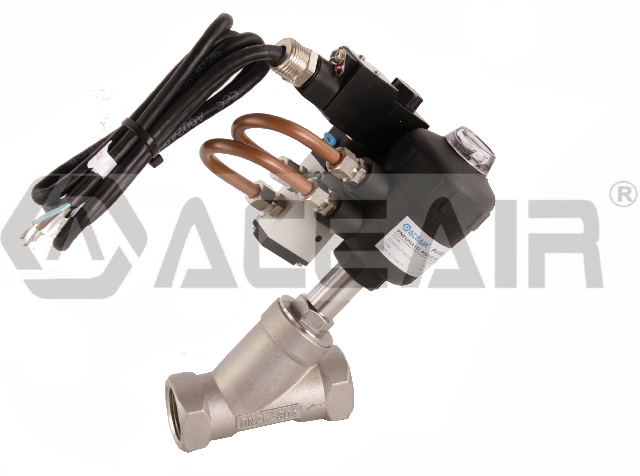

Angle Seat Valve with Solenoid Valve for controller:

*   2/3 way solenoid valve can be used in single acting angle seat valve;

*   2/5 way solenoid valve can be used in double acting angle seat valve;

*   EX-proof coils is optional.

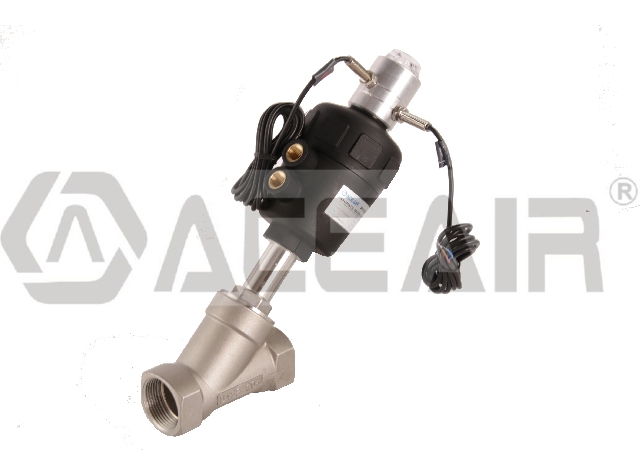

Angle-seat Valve ,With Proximity Switch for Position Feedback.

*   NC and NO universal actuators with proximity switch up to control head;

*   Switch can be easily installed on the actuator;

*   Switch signal can be transmitted to PLC etc. to show the valve on or off.

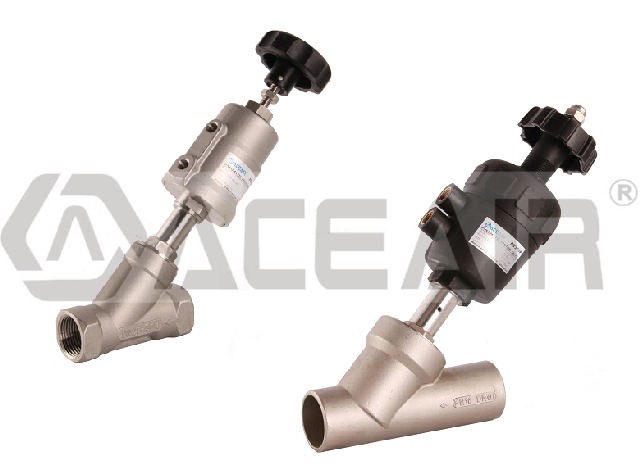

Angle-seat Valve with Manual Override for Stroke Limiting:

*   Adjust piston position, limits stroke and regulate flow volume of valve.

*   Applicable for all series of angle seat valve, and works as emergency override in cased when the controlling air source suffers no machanical (solenoid valve) failure.
