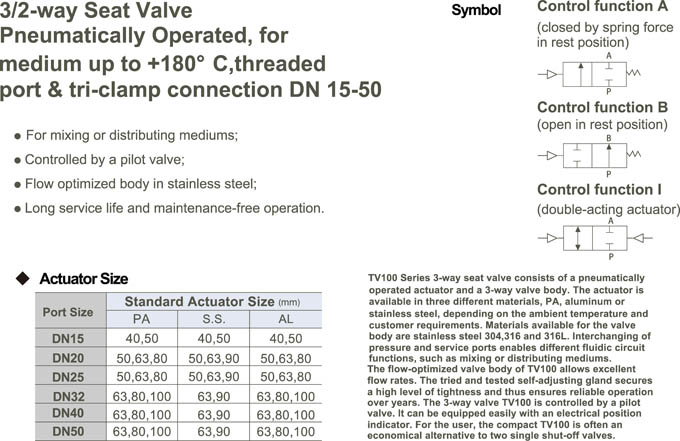

TV series 3-way seat valve consists of a pneumatically operated actuator and a 3-way valve body

• Tri-Clmap ends 3-way seat valve;

• Stainless steel Actuator;

• Available material for the valve body is stainless steel 304,316 or 316L;

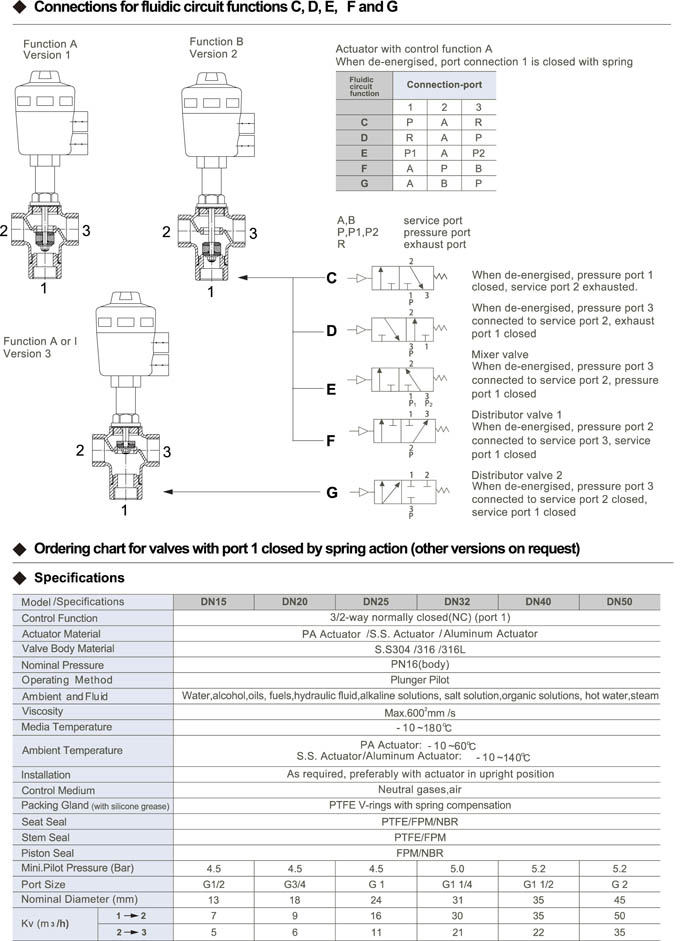

• Interchange of pressure and service ports enables different fluidic circuit functions, such as the mixng or distributing of mediums.

• Thread port or Tri-Clamp connection are optional.
