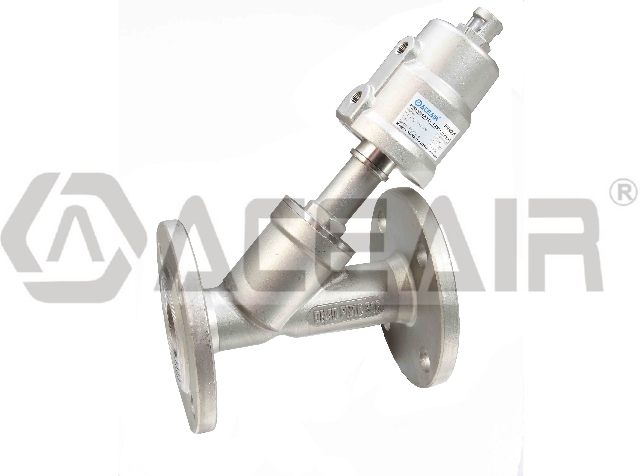

Flange Ends, Angle Seat Valve (PV400S SS Actuator)

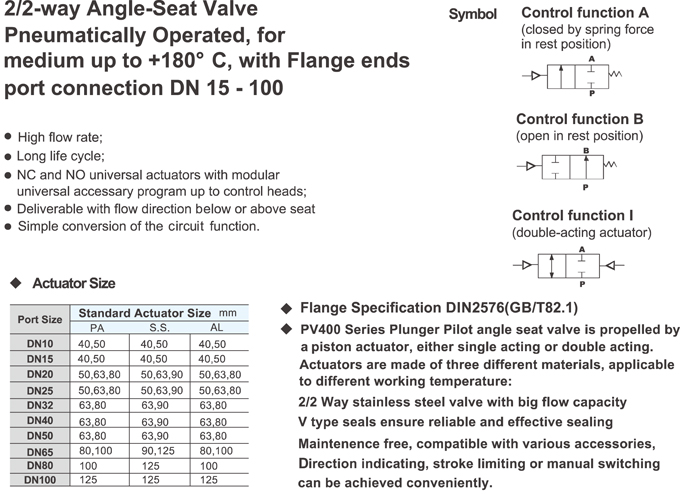

2/2-way Angle-Seat Valve for medium up to +180°C, Flange Ends,port connection, DN 15-100, SS
Actuator.
• High flow rate
• Long life cycle
• NC and NO universal actuators with modular universal accessory program up to control heads
• Deliverable with flow direction below or above seat
• Simple conversion of the control function

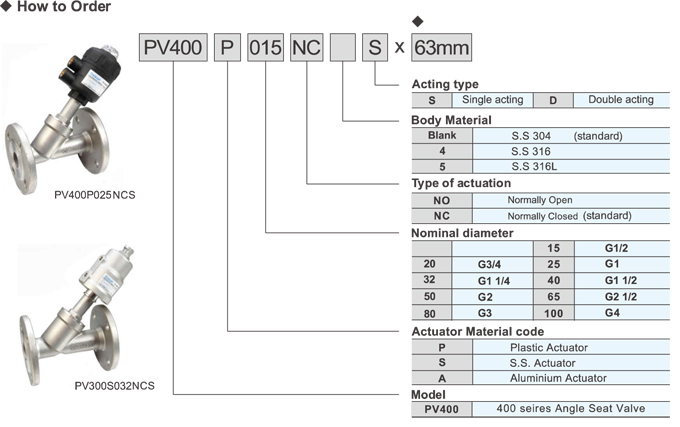

- ordering

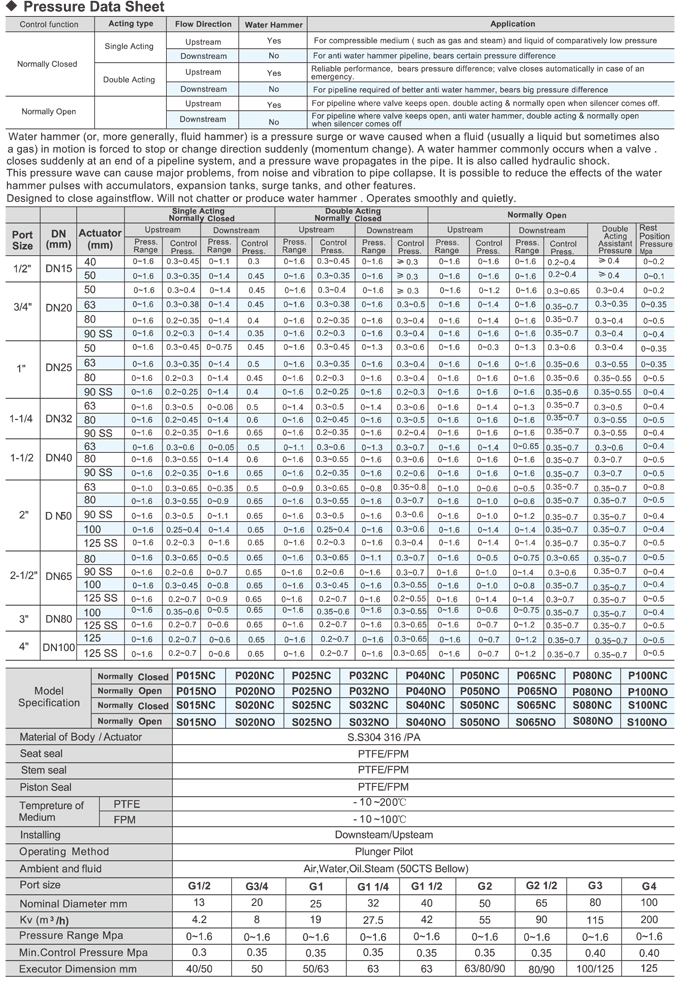

- specification

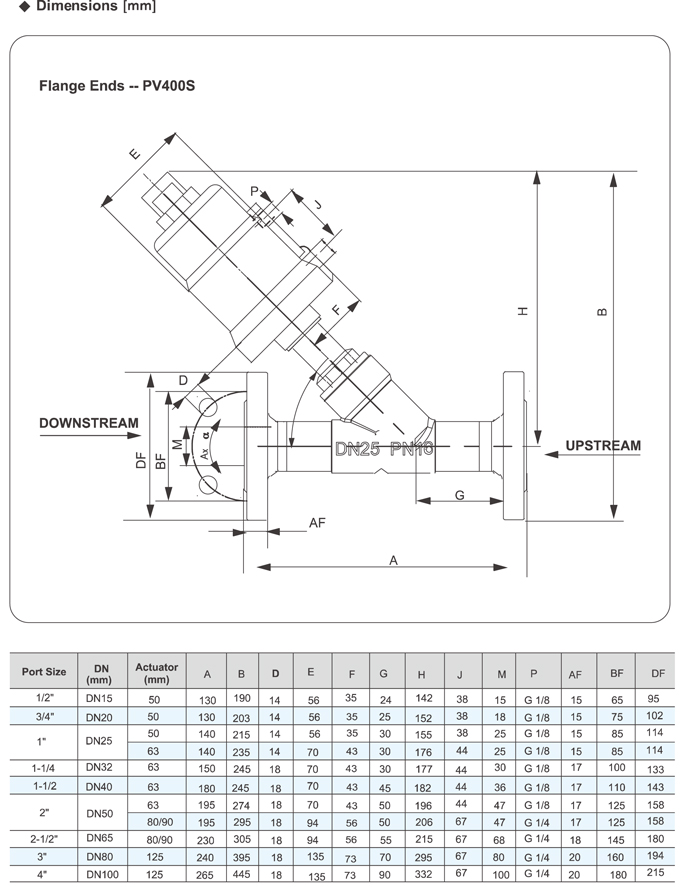

- dimensions
- other
![](/upload/image/20151113/20151113203682768276.jpg)
![](/upload/image/20151113/20151113203642854285.jpg)
![](/upload/image/20151113/20151113203654525452.jpg)
![](/upload/image/20151113/20151113203742214221.jpg)
